BME280 Driver. More...

Collaboration diagram for BME280_Driver:

Modules
	Private Resources
	only for internal library purposes

	Library Configuration
	Set library options here.

	Public functions
	Use these functions only.

	BME280 Returnd Values
	Values that can be returned by the driver's functions.

	BME280 I2C Address
	Address on I2C bus.

	BME280 Registers
	Definition of register addresses and lenghts.

	BME280 Settings
	Inernal sensor's settings that can be changed.

	Function pointers
	Platform speicific functions.

	Public typedefs
	Typedefs for internal calculations.

Data Structures
struct	BME280_calibration_data
	Keeps calibration data that were read from sensor. More...

struct	BME280_Driver_t
	Keeps all data specific for used platform. More...

struct	BME280_t
	Keeps all data related to a single sensor. More...

struct	BME280_Config_t
	Contains all sensor's settings. More...

struct	BME280_Data_t
	Contains result of measure (no floating points variables) More...

struct	BME280_DataF_t
	Contains result of measure (with floating points variables) More...

Functions
int8_t	BME280_Init (BME280_t Dev, BME280_Driver_t Driver)
	Function to initialize sensor and resources.

int8_t	BME280_ConfigureAll (BME280_t Dev, BME280_Config_t Config)
	Function to set all sensor settings at once.

int8_t	BME280_Reset (BME280_t *Dev)
	Function to perform sensor's software reset.

int8_t	BME280_GetMode (BME280_t Dev, uint8_t Mode)
	Function gets current Operating Mode from sensor.

int8_t	BME280_GetPOvs (BME280_t Dev, uint8_t POvs)
	Function gets current pressure Oversampling from sensor.

int8_t	BME280_GetTOvs (BME280_t Dev, uint8_t TOvs)
	Function gets current temperature Oversampling from sensor.

int8_t	BME280_GetHOvs (BME280_t Dev, uint8_t HOvs)
	Function gets current humidity Oversampling from sensor.

int8_t	BME280_GetTStby (BME280_t Dev, uint8_t TStby)
	Function gets current Standby Time from sensor.

int8_t	BME280_GetTFilter (BME280_t Dev, uint8_t Filter)
	Function gets current IIR Filter coeficient from sensor.

int8_t	BME280_Is3WireSPIEnabled (BME280_t Dev, uint8_t Result)
	Function checks if 3-wire SPI is enabled.

int8_t	BME280_SetMode (BME280_t *Dev, uint8_t Mode)
	Function sets sensor's Operating Mode.

int8_t	BME280_SetPOvs (BME280_t *Dev, uint8_t POvs)
	Function sets sensor's pressure Oversampling.

int8_t	BME280_SetTOvs (BME280_t *Dev, uint8_t TOvs)
	Function sets sensor's temperature Oversampling.

int8_t	BME280_SetHOvs (BME280_t *Dev, uint8_t HOvs)
	Function sets sensor's humidity Oversampling.

int8_t	BME280_SetTStby (BME280_t *Dev, uint8_t TStby)
	Function sets sensor's Standby Time.

int8_t	BME280_SetFilter (BME280_t *Dev, uint8_t Filter)
	Function sets sensor's IIR Filter coeficient.

int8_t	BME280_Enable3WireSPI (BME280_t *Dev)
	Function enables 3-wire SPI bus.

int8_t	BME280_Disable3WireSPI (BME280_t *Dev)
	Function disables 3-wire SPI bus.

int8_t	BME280_ReadAllLast (BME280_t Dev, BME280_Data_t Data)
	Function reads all measured data at once.

int8_t	BME280_ReadTempLast (BME280_t Dev, int8_t TempInt, uint8_t *TempFract)
	Function reads last measured temperature.

int8_t	BME280_ReadPressLast (BME280_t Dev, uint16_t PressInt, uint16_t *PressFract)
	Function reads last measured pressure.

int8_t	BME280_ReadHumLast (BME280_t Dev, uint8_t HumInt, uint16_t *HumFract)
	Function reads last measured humidity.

int8_t	BME280_ReadAllForce (BME280_t Dev, BME280_Data_t Data)
	Function forces single measure and returns all data as integers.

int8_t	BME280_ReadTempForce (BME280_t Dev, int8_t TempInt, uint8_t *TempFract)
	Function forces single measure and returns temperatrue as integers (forced mode)

int8_t	BME280_ReadPressForce (BME280_t Dev, uint16_t PressInt, uint16_t *PressFract)
	Function forces single measure and returns pressure as integers (forced mode)

int8_t	BME280_ReadHumForce (BME280_t Dev, uint8_t HumInt, uint16_t *HumFract)
	Function forces single measure and returns humidity as integers (forced mode)

int8_t	BME280_ReadAllLast_F (BME280_t Dev, BME280_DataF_t Data)
	Function reads all measured data at once.

int8_t	BME280_ReadTempLast_F (BME280_t Dev, float Temp)
	Function reads last measured temperature.

int8_t	BME280_ReadPressLast_F (BME280_t Dev, float Press)
	Function reads last measured pressure.

int8_t	BME280_ReadHumLast_F (BME280_t Dev, float Hum)
	Function reads last measured humidity.

int8_t	BME280_ReadAllForce_F (BME280_t Dev, BME280_DataF_t Data)
	Function forces single measure and returns all data as floats.

int8_t	BME280_ReadTempForce_F (BME280_t Dev, float Temp)
	Function forces single measure and returns temperatrue as floats (forced mode)

int8_t	BME280_ReadPressForce_F (BME280_t Dev, float Press)
	Function forces single measure and returns pressure as floats (forced mode)

int8_t	BME280_ReadHumForce_F (BME280_t Dev, float Hum)
	Function forces single measure and returns humidity as floats (forced mode)

Detailed Description

BME280 Driver.

Function Documentation

◆ BME280_ConfigureAll()

int8_t BME280_ConfigureAll	(	BME280_t *	Dev,
		BME280_Config_t *	Config
	)

Function to set all sensor settings at once.

Note: Sensor must be in BME280_SLEEPMODE to set all parameters. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function writes all 3 config registers without reading them before. It can be usefull after power-up or reset. It sets current operating mode inside *Dev structure at the end.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[in]	*Config	pointer to BME280_Config_t structure which contains all paramaters to be set

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BME280_Disable3WireSPI()

int8_t BME280_Disable3WireSPI ( BME280_t * Dev )

Function disables 3-wire SPI bus.

Note: Sensor must be in BME280_SLEEPMODE to set this parameter. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function reads single register from sensor, and checks if current value matches value requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value.

Parameters

[in] *Dev pointer to sensor's BME280_t structure

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

◆ BME280_Enable3WireSPI()

int8_t BME280_Enable3WireSPI ( BME280_t * Dev )

Function enables 3-wire SPI bus.

Note: Sensor must be in BME280_SLEEPMODE to set this parameter. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function reads single register from sensor, and checks if current value matches value requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value.

Parameters

[in] *Dev pointer to sensor's BME280_t structure

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

◆ BME280_GetHOvs()

int8_t BME280_GetHOvs	(	BME280_t *	Dev,
		uint8_t *	HOvs
	)

Function gets current humidity Oversampling from sensor.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*HOvs	pointer to vartiable where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_NO_INIT_ERR sensor was not initialized before; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the call graph for this function:

◆ BME280_GetMode()

int8_t BME280_GetMode	(	BME280_t *	Dev,
		uint8_t *	Mode
	)

Function gets current Operating Mode from sensor.

Function updates current operating mode inside *Dev structure as well.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Mode	pointer to vartiable where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_NO_INIT_ERR sensor was not initialized before; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the call graph for this function:

◆ BME280_GetPOvs()

int8_t BME280_GetPOvs	(	BME280_t *	Dev,
		uint8_t *	POvs
	)

Function gets current pressure Oversampling from sensor.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*POvs	pointer to vartiable where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_NO_INIT_ERR sensor was not initialized before; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the call graph for this function:

◆ BME280_GetTFilter()

int8_t BME280_GetTFilter	(	BME280_t *	Dev,
		uint8_t *	Filter
	)

Function gets current IIR Filter coeficient from sensor.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Filter	pointer to vartiable where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_NO_INIT_ERR sensor was not initialized before; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the call graph for this function:

◆ BME280_GetTOvs()

int8_t BME280_GetTOvs	(	BME280_t *	Dev,
		uint8_t *	TOvs
	)

Function gets current temperature Oversampling from sensor.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*TOvs	pointer to vartiable where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_NO_INIT_ERR sensor was not initialized before; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the call graph for this function:

◆ BME280_GetTStby()

int8_t BME280_GetTStby	(	BME280_t *	Dev,
		uint8_t *	TStby
	)

Function gets current Standby Time from sensor.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*TStby	pointer to vartiable where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_NO_INIT_ERR sensor was not initialized before; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the call graph for this function:

◆ BME280_Init()

int8_t BME280_Init	(	BME280_t *	Dev,
		BME280_Driver_t *	Driver
	)

Function to initialize sensor and resources.

Note: This must be a first function usend in code before any other opearion can be performed!

Init funtion performs sensor reset and checks BME280_ID. It doesn't set any sensor's parameters. Calibration data specific for each one sensor are read while Init function. If operation is completed with success function sets "initialized" value in BME280_t structure.

Parameters

[in]	*Dev	pointer to BME280_t structure which should be initialized
[in]	*Driver	pointer to BME280_Driver_t structure where all platform specific data are stored. This structure MUST exist while program is running - do not use local structures to init sensor!

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_ID_ERR sensor's id doesnt match with BME280_ID

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BME280_Is3WireSPIEnabled()

int8_t BME280_Is3WireSPIEnabled	(	BME280_t *	Dev,
		uint8_t *	Result
	)

Function checks if 3-wire SPI is enabled.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Result	pointer to vartiable where result will be stored, 0 - disabled, 1 - enabled

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_NO_INIT_ERR sensor was not initialized before; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the call graph for this function:

◆ BME280_ReadAllForce()

int8_t BME280_ReadAllForce	(	BME280_t *	Dev,
		BME280_Data_t *	Data
	)

Function forces single measure and returns all data as integers.

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads all adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into BME280_Data_t structure.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Data	pointer to structure where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BME280_ReadAllForce_F()

int8_t BME280_ReadAllForce_F	(	BME280_t *	Dev,
		BME280_DataF_t *	Data
	)

Function forces single measure and returns all data as floats.

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads all adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into BME280_DataF_t structure.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Data	pointer to structure where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

◆ BME280_ReadAllLast()

int8_t BME280_ReadAllLast	(	BME280_t *	Dev,
		BME280_Data_t *	Data
	)

Function reads all measured data at once.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads all adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into BME280_Data_t structure.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Data	pointer to structure where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BME280_ReadAllLast_F()

int8_t BME280_ReadAllLast_F	(	BME280_t *	Dev,
		BME280_DataF_t *	Data
	)

Function reads all measured data at once.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads all adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into BME280_DataF_t structure.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Data	pointer to structure where result will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

Here is the call graph for this function:

◆ BME280_ReadHumForce()

int8_t BME280_ReadHumForce	(	BME280_t *	Dev,
		uint8_t *	HumInt,
		uint16_t *	HumFract
	)

Function forces single measure and returns humidity as integers (forced mode)

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads temperarure and humidity related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into integer (*HumInt) and fractial part (*HumFract).

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*HumInt	pointer to variable where integer part of humidity will be stored
[out]	*HumFract	pointer to variable where fractial part of humidity will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

◆ BME280_ReadHumForce_F()

int8_t BME280_ReadHumForce_F	(	BME280_t *	Dev,
		float *	Hum
	)

Function forces single measure and returns humidity as floats (forced mode)

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads temperature and humidity related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into float.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Hum	pointer to variable where humidity will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

◆ BME280_ReadHumLast()

int8_t BME280_ReadHumLast	(	BME280_t *	Dev,
		uint8_t *	HumInt,
		uint16_t *	HumFract
	)

Function reads last measured humidity.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads temperature and humidity related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated value is then converted into integer part and fractial part and stored in external variables

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*HumInt	pointer to variable where integer part of humidity will be stored
[out]	*HumFract	pointer to variable where fractial part of humidity will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

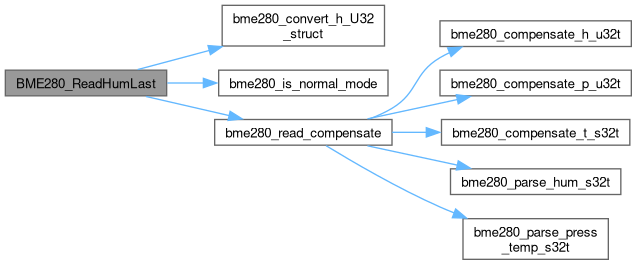

Here is the call graph for this function:

◆ BME280_ReadHumLast_F()

int8_t BME280_ReadHumLast_F	(	BME280_t *	Dev,
		float *	Hum
	)

Function reads last measured humidity.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads temperature and humidity related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated value is then converted into floating point value and stored in external variable

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Hum	pointer to variable where temperature will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

Here is the call graph for this function:

◆ BME280_ReadPressForce()

int8_t BME280_ReadPressForce	(	BME280_t *	Dev,
		uint16_t *	PressInt,
		uint16_t *	PressFract
	)

Function forces single measure and returns pressure as integers (forced mode)

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads temperarure and pressure related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into integer (*PressInt) and fractial part (*PressFract).

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*PressInt	pointer to variable where integer part of pressure will be stored
[out]	*PressFract	pointer to variable where fractial part of pressure will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

◆ BME280_ReadPressForce_F()

int8_t BME280_ReadPressForce_F	(	BME280_t *	Dev,
		float *	Press
	)

Function forces single measure and returns pressure as floats (forced mode)

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads temperature and pressure related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into float.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Press	pointer to variable where pressure will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

◆ BME280_ReadPressLast()

int8_t BME280_ReadPressLast	(	BME280_t *	Dev,
		uint16_t *	PressInt,
		uint16_t *	PressFract
	)

Function reads last measured pressure.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads temperature and pressure related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated value is then converted into integer part and fractial part and stored in external variables

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*PressInt	pointer to variable where integer part of pressure will be stored
[out]	*PressFract	pointer to variable where fractial part of pressure will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

Here is the call graph for this function:

◆ BME280_ReadPressLast_F()

int8_t BME280_ReadPressLast_F	(	BME280_t *	Dev,
		float *	Press
	)

Function reads last measured pressure.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads temperature and pressure related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated value is then converted into floating point value and stored in external variable

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Press	pointer to variable where temperature will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

Here is the call graph for this function:

◆ BME280_ReadTempForce()

int8_t BME280_ReadTempForce	(	BME280_t *	Dev,
		int8_t *	TempInt,
		uint8_t *	TempFract
	)

Function forces single measure and returns temperatrue as integers (forced mode)

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads temperature related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into integer (*TempInt) and fractial part (*TempFract).

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*TempInt	pointer to variable where integer part of temperature will be stored
[out]	*TempFract	pointer to variable where fractial part of temperature will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

◆ BME280_ReadTempForce_F()

int8_t BME280_ReadTempForce_F	(	BME280_t *	Dev,
		float *	Temp
	)

Function forces single measure and returns temperatrue as floats (forced mode)

Note: Sensor must be in BME280_SLEEPMODE to force a single measurement.

Function reads sensor's configuration to check conditions and calculate max. delay time required for measure cycle. Then sends command to force single measurement and calls used-defined delay function. When delay function returns ir reads temperature related adc values from sensor, converts them into single variables and compensate with use BME280_calibration_data. Compensated values are then converted into float.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Temp	pointer to variable where temperature will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE; BME280_BUSY_ERR sensor is busy so cannot proceed

Here is the call graph for this function:

◆ BME280_ReadTempLast()

int8_t BME280_ReadTempLast	(	BME280_t *	Dev,
		int8_t *	TempInt,
		uint8_t *	TempFract
	)

Function reads last measured temperature.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads temperature related adc values from sensor, converts them into single variable and compensate with use BME280_calibration_data. Compensated value is then converted into integer part and fractial part and stored in external variables

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*TempInt	pointer to variable where integer part of temperature will be stored
[out]	*TempFract	pointer to variable where fractial part of temperature will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

Here is the call graph for this function:

◆ BME280_ReadTempLast_F()

int8_t BME280_ReadTempLast_F	(	BME280_t *	Dev,
		float *	Temp
	)

Function reads last measured temperature.

Note: Sensor must be in BME280_NORMALMODE to read last measured values.

Function reads temperature related adc values from sensor, converts them into single variable and compensate with use BME280_calibration_data. Compensated value is then converted into floating point value and stored in external variable

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[out]	*Temp	pointer to variable where temperature will be stored

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_NORMALMODE

Here is the call graph for this function:

◆ BME280_Reset()

int8_t BME280_Reset ( BME280_t * Dev )

Function to perform sensor's software reset.

Function sends BME280_RESET_VALUE to BME280_RESET_ADDR. To perform this operation bme280_writeregister function must be set inside BME280_t *Dev structure. Function sets "sleep_mode" inside *Dev structure after reset.

Parameters

[in] *Dev pointer to sensor's BME280_t structure

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed or bme280_writeregister function is not set; BME280_INTERFACE_ERR user defined read/write function returned non-zero value

Here is the caller graph for this function:

◆ BME280_SetFilter()

int8_t BME280_SetFilter	(	BME280_t *	Dev,
		uint8_t	Filter
	)

Function sets sensor's IIR Filter coeficient.

Note: Sensor must be in BME280_SLEEPMODE to set this parameter. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function reads single register from sensor, and checks if current value matches value requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[in]	Filter	value to be set, must be in range of IIR Filter

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

◆ BME280_SetHOvs()

int8_t BME280_SetHOvs	(	BME280_t *	Dev,
		uint8_t	HOvs
	)

Function sets sensor's humidity Oversampling.

Note: Sensor must be in BME280_SLEEPMODE to set this parameter. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function reads single register from sensor, and checks if current value matches value requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[in]	HOvs	value to be set, must be in range of Oversampling

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

◆ BME280_SetMode()

int8_t BME280_SetMode	(	BME280_t *	Dev,
		uint8_t	Mode
	)

Function sets sensor's Operating Mode.

Function reads single register from sensor, and checks if current mode matches mode requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value, then sets correct operating mode inside *Dev structure.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[in]	Mode	value to be set, must be in range of Operating Mode

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before

Here is the call graph for this function:

◆ BME280_SetPOvs()

int8_t BME280_SetPOvs	(	BME280_t *	Dev,
		uint8_t	POvs
	)

Function sets sensor's pressure Oversampling.

Note: Sensor must be in BME280_SLEEPMODE to set this parameter. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function reads single register from sensor, and checks if current value matches value requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[in]	POvs	value to be set, must be in range of Oversampling

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

◆ BME280_SetTOvs()

int8_t BME280_SetTOvs	(	BME280_t *	Dev,
		uint8_t	TOvs
	)

Function sets sensor's temperature Oversampling.

Note: Sensor must be in BME280_SLEEPMODE to set this parameter. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function reads single register from sensor, and checks if current value matches value requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[in]	TOvs	value to be set, must be in range of Oversampling

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

◆ BME280_SetTStby()

int8_t BME280_SetTStby	(	BME280_t *	Dev,
		uint8_t	TStby
	)

Function sets sensor's Standby Time.

Note: Sensor must be in BME280_SLEEPMODE to set this parameter. Force BME280_SLEEPMODE with BME280_SetMode function before or use it directly after BME280_Init function only.

Function reads single register from sensor, and checks if current value matches value requested by user. If matches, function skips write operation and returns BME280_OK. If doesnt, it prepares and sends new register value.

Parameters

[in]	*Dev	pointer to sensor's BME280_t structure
[in]	TStby	value to be set, must be in range of Standby Time

Returns: BME280_OK success; BME280_PARAM_ERR wrong parameter passed; BME280_INTERFACE_ERR user defined read/write function returned non-zero value; BME280_NO_INIT_ERR sensor was not initialized before; BME280_CONDITION_ERR sensor is not in BME280_SLEEPMODE

Here is the call graph for this function:

Modules

Data Structures

Functions

Detailed Description

Function Documentation

◆ BME280_ConfigureAll()

◆ BME280_Disable3WireSPI()

◆ BME280_Enable3WireSPI()

◆ BME280_GetHOvs()

◆ BME280_GetMode()

◆ BME280_GetPOvs()

◆ BME280_GetTFilter()

◆ BME280_GetTOvs()

◆ BME280_GetTStby()

◆ BME280_Init()

◆ BME280_Is3WireSPIEnabled()

◆ BME280_ReadAllForce()

◆ BME280_ReadAllForce_F()

◆ BME280_ReadAllLast()

◆ BME280_ReadAllLast_F()

◆ BME280_ReadHumForce()

◆ BME280_ReadHumForce_F()

◆ BME280_ReadHumLast()

◆ BME280_ReadHumLast_F()

◆ BME280_ReadPressForce()

◆ BME280_ReadPressForce_F()

◆ BME280_ReadPressLast()

◆ BME280_ReadPressLast_F()

◆ BME280_ReadTempForce()

◆ BME280_ReadTempForce_F()

◆ BME280_ReadTempLast()

◆ BME280_ReadTempLast_F()

◆ BME280_Reset()

◆ BME280_SetFilter()

◆ BME280_SetHOvs()

◆ BME280_SetMode()

◆ BME280_SetPOvs()

◆ BME280_SetTOvs()

◆ BME280_SetTStby()
